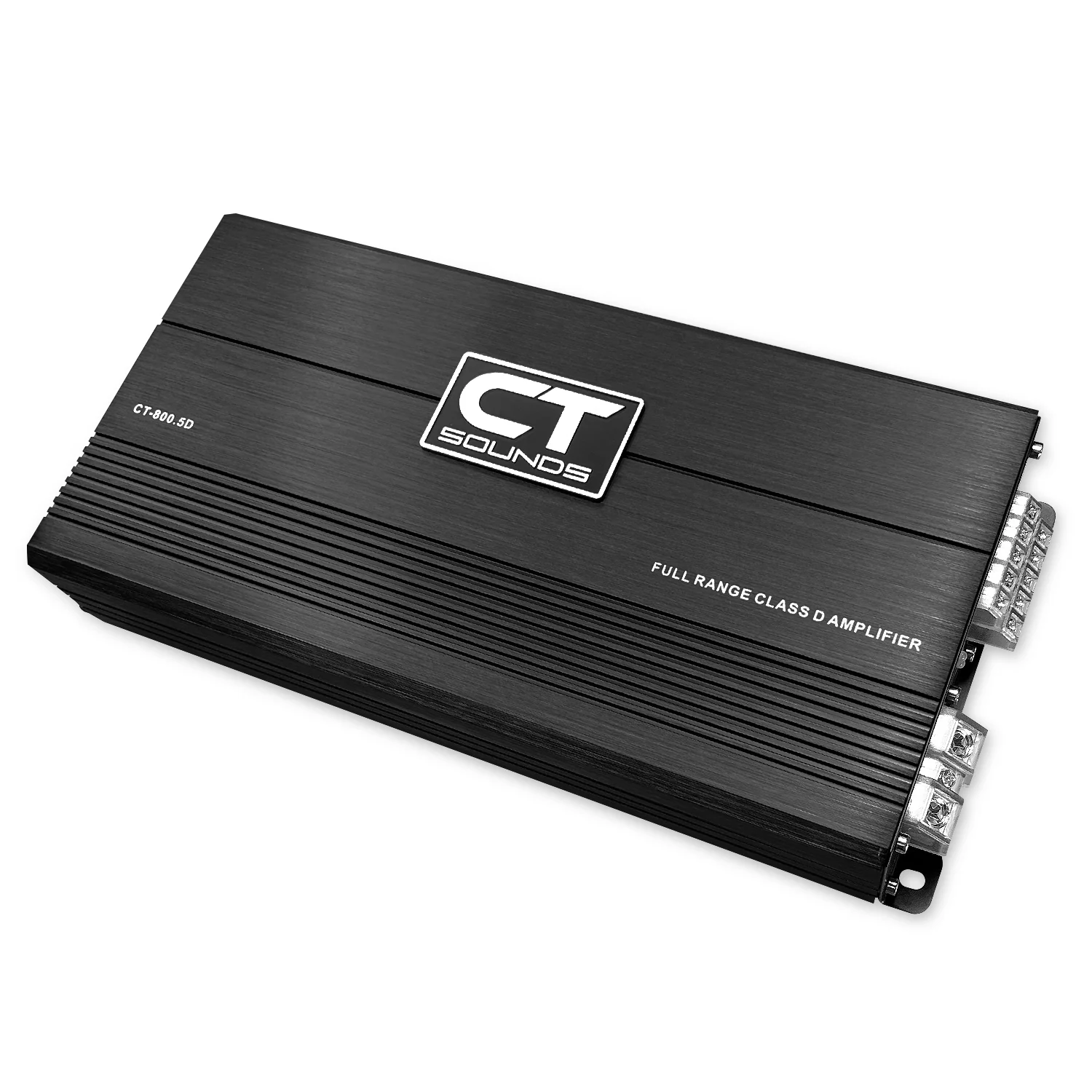

CT-800.5D // 1000 Watts RMS 5-Channel Car Amplifier
CT Sounds engineered the CT-800.5D 1000-watt 5-channel car amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. This 5-channel amp can power an entire system - 4 speakers and a subwoofer with just one amplifier.
| Quick Facts: | |
| RMS Power: 1Ω @ 14.4v | CH5: 400W x 1-Ch |
| RMS Power: 2Ω @ 14.4v | CH1-4: 155W x 4-Ch CH5: 300W x 1-Ch |
| RMS Power: 4Ω @ 14.4v | CH1-4: 100W x 4-Ch CH5: 200W x 1-Ch |
This 5-channel amplifier features a Low Pass Filter (LPF), High Pass Filter (HPF), and Bass Boost so you can get the exact sound you want out of your amplifier. The MOSFET power supply and proprietary heat dissipation design ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint make it easy to install in any car audio application.
You can sleep easy at night knowing your amplifier is protected from damage due to the amplifier's uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.
FEATURES| Features: | |
| Continuously-Variable Input Gain Control | ✔️ |
| Remote Turn-On / Turn-Off Circuit | ✔️ |
| MOSFET Pulse Width Modulated Power Supply | ✔️ |
| Soft Turn-On Circuit | ✔️ |
| High Voltage / Low Voltage Protection Circuit | ✔️ |
| Thermal and Speaker Short Protection Circuit | ✔️ |
| LED Power and Protection Indicators | ✔️ |
| Technical Specifications: | |
| Amplifier Type: | 5-Channel Amplifier |
| Amplifier Circuitry: | Class D |
| Built-In Crossover? | CH1-4: Yes; HPF, Full-Range CH5: Yes, LPF |
| Bridgeable? | Yes |
| RMS Power @ 1 Ohm: | CH5: 400Wx 1-Ch (14.4v) |
| RMS Power @ 2 Ohm: | CH1-4: 155W x 4-Ch (14.4v) CH5: 300W x 1-Ch (14.4v) |
| RMS Power @ 4 Ohm: | CH1-4: 100W x 4-Ch (14.4v) CH5: 200W x 1-Ch (14.4v) |
| RMS Power @ 4 Ohm (Bridged): | CH1-4: 320W x 2-Ch (14.4v) |
| Recommended Fuse: | 100A |
| Power & Ground Input Size: | 4 Gauge |
| Speaker Input Size: | 8 Gauge |
| Gain Adjustment: | CH1-4: 0.32v - 4.4v CH5: 0.22v - 7.5v |
| Low Pass Filter (LPF): | CH1-4: N/A CH5: 40 Hz - 250 Hz |
| High Pass Filter (HPF): | CH1-4: 40 Hz - 4 kHz CH5: N/A |
| Bass Boost: | CH1-4: N/A CH5: 0 dB - 12dB |
| Bass Boost Frequency: | 45 Hz |
| Frequency Response: | 20 Hz - 20 kHz |
| Signal-To-Noise Ratio (S/N): | 94 dB |
| Damping Factor: | 170 |
| Input Impedance: | 22 Kohms |
| Input Sensitivity: | 220 mV |
| Operating Voltage: | 8.6v - 16v |
| Minimum Impedance: | 1 ohm |
| Dimensions: | |
| Length: | 11.42" |
| Width: | 5.63" |
| Height: | 2.19" |
